Security¶

Apilane provides all the tools required for granular access control to the application on entity and property level.

The settings on this page are on the Security tab of the application in the Portal. The access settings (the cards Sign-in, Register, Files and IP access) are saved together with Save settings; the rules per entity and custom endpoint are edited further down the same screen and saved on their own. The Help button in the header of the screen, and the one of the access rules, explain them on the spot.

A new application starts with a token lifetime of 60 minutes, Allow users with an unconfirmed email to sign in on, Allow new users to register on, Allow only one sign-in at a time off and a maximum file size of 100 KB.

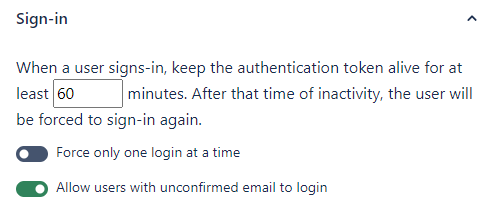

Sign in¶

Sign-in attempts are limited per login name: over the limit, Account/Login answers RATE_LIMIT_EXCEEDED.

Allow only one sign-in at a time¶

If this option is enabled, each new user login forces logout from any previous logged-in sessions. This setting essentially deletes/deprecates any previous authentication tokens, which will prevent further access using those tokens.

Allow users with an unconfirmed email to sign in¶

If this option is enabled, all users can login regardless of whether their email is confirmed or not. Disabling this requires that users have confirmed their email before being able to login and retrieve an authentication token.

Auth token lifetime (minutes)¶

Each application defines how long authentication tokens remain valid after the last authenticated request (in minutes). The token is extended by a call made after more than a tenth of the lifetime has passed since the last extension, so a token expires after about this time of inactivity (at least 90% of it). Once expired, the user must log in again or renew the token beforehand via the RenewAuthToken endpoint. A change to the roles of a user who is already signed in can take until their token is next extended, or until their next sign-in, to reach them.

Authenticating requests¶

Once logged in, a client authenticates each request in one of two ways:

1. Bearer token (default). Send the authentication token in the Authorization: Bearer <token> header. Simple, but the secret travels on every request — anyone able to observe it (logs, a TLS-terminating proxy, browser history) can reuse it until it expires.

2. Signed requests (proof-of-possession). The token is treated as a shared secret that is stored once at login and never transmitted again. Each request instead carries an HMAC signature proving the client holds the token. This is safer than bearer: a logged or intercepted request does not expose the token, and it can only be replayed for a short time.

Login (and the login response of the SDKs) returns the token's id (AuthTokenID) in addition to the token. The id is the public key identifier; the token is the signing secret. The client sends these headers:

The signature is computed as HMAC-SHA256(secret = token, message = canonical) where the canonical string is the newline-joined list:

keyId
HTTP-METHOD (upper-case)
path + query (as sent)
timestamp
base64(SHA-256(request body))

The server resolves the secret from x-auth-keyid, recomputes the signature over the same canonical string, and compares it in constant time. A request whose timestamp is outside a small clock-skew window (fixed at ±2 minutes, not configurable) or whose signature does not match is treated like a request without a valid token: it is answered UNAUTHORIZED unless an ANONYMOUS rule allows it.

Because the secret is never sent, a logged or intercepted request cannot expose the token, and an intercepted request is only usable inside that short window. Requests are not numbered, so an intercepted request can be sent again until that window has passed. Both the .NET and JavaScript SDKs implement this via .WithSigning(keyId, secret) / .withSigning(keyId, secret) on any request. (File uploads cannot be signed and must use the bearer token.)

A link that cannot set headers (for example a file in an <img>) may carry the token as the authToken query parameter instead. A URL is kept in logs, proxies and browser history, so use this only for such links and never for calls you make from code. The API server masks the value in its own log, but the access log of a reverse proxy in front of it keeps the whole address.

Register¶

Allow new users to register¶

Allow or prevent new users from registering. This option may be useful for internal applications that you would like to protect from unintended registrations.

Files¶

Maximum file size (KB)¶

The largest file a user can upload, from 1 KB to 25,600 KB (25 MB). Whether a user can upload at all, and whose files they can read, is an access rule on the Files entity (see Files).

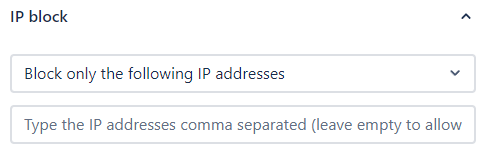

IP allow/block¶

Two modes are available for IP-based access control (card IP access, choice 'Addresses in the list are'). Each box holds one entry, which is an address (IPv4 203.0.113.7, or IPv6 2001:db8::1), a network in CIDR notation (10.0.0.0/8, 192.168.1.0/24, 2001:db8::/32) or a range of addresses of one family, both ends included (10.0.0.1-10.0.0.50). A network is written without bits beyond its prefix (10.0.0.0/8, not 10.1.2.3/8), and an IPv4 address in plain dotted form, with no leading zeros. The Portal stores every entry in this canonical form. An empty list accepts every address. The caller's address is the address of the connection, or an entry of the X-Forwarded-For header when the connection comes from one of your own proxies, as the TrustedProxies setting of the API server says: see Where the address of a caller comes from. The list does not apply to people who manage the application in the Portal.

Blocked: every other address is accepted¶

Use this setting to block specific IP addresses from accessing your application. This configuration may be useful if you wish to isolate applications, e.g. prevent access to a production application from a development/staging server.

Allowed: every other address is blocked¶

Use this setting to allow only specific IP addresses to access your application. This configuration may be useful if you wish to isolate applications, e.g. allow access to a production application only from a production server.

Where the address of a caller comes from¶

The list is looked up with the address of each caller. The API server takes it from the connection, or from the X-Forwarded-For header that a reverse proxy, load balancer or CDN adds. A header is only text: anyone who can reach the API server can send X-Forwarded-For: 10.0.0.5 and be taken for 10.0.0.5. The same address is written in the log. The TrustedProxies setting of the API server says which connections are your own proxies, and so how much of the header is believed.

Set it in appsettings.json of the API server, as "TrustedProxies": ["172.18.0.2"], or as the environment variable TrustedProxies=172.18.0.2 (TrustedProxies__0=... for each one of a list), and restart the API server. A value that is not an address, a network or a range stops the start with a message that names it. It is a setting of the server, so it applies to every application on it.

Several proxies in a row¶

Behind a CDN or a cloud load balancer that sits in front of your own reverse proxy, the API server gets the proxy as the connection and, in X-Forwarded-For, the caller followed by the address of the CDN server that your proxy talked to (203.0.113.7, 172.70.1.2). The header is read from the right, so every proxy of the chain has to be in TrustedProxies: yours, and the networks the CDN publishes for its edge servers. With only your own proxy listed, the caller would be taken to be 172.70.1.2, an address of the CDN, and an Allow list would refuse the real callers. The Security tab notices this: when the header holds addresses to the left of the one in use, it shows them and says to add the network of the one in use if it is a proxy.

Let only the CDN reach your origin (a firewall rule, or authenticated origin pulls): the header of a proxy of the list is believed, so anyone who reaches the origin from a listed address, or who can make your proxy forward their header unchanged, can still write it.

The IP access card of the Security tab shows what the API server sees for your browser and says what, if anything, to change: Works, or which address to set. How the address is determined opens the explanation with examples for nginx, Caddy, Traefik, HAProxy, docker-compose and appsettings.

Forgot password¶

The Forgot password card shows two addresses that start a password reset: a ready-made page for your users ({ServerUrl}/App/{appToken}/Account/Manage/ForgotPassword) and the Email/ForgotPassword endpoint. Both send the Reset password email and need the SMTP settings, and both share one limit of one email per address every 5 minutes. Forgot-password and confirmation requests also share a 60-call-per-minute budget for the application, including unknown addresses. The rate-limit store expires idle entries and refuses new requests when its bounded capacity is full. A successful password reset or password change signs the user out of every existing session and invalidates outstanding reset links. So does setting a user's Password, or deleting the user, through the Data API. The card has nothing to save.

Roles¶

Apilane uses a role-based access control (RBAC) system with two built-in roles:

You can create custom roles (e.g., admin, manager, editor) and assign them to application users. A role is a name in the Roles property of a user: lower-case letters a-z only (no digits, spaces, capitals or _), several roles separated by commas (admin,editor). There is no list of roles to maintain: a role exists once a user has it or a rule names it. Permissions are evaluated across all applicable roles.

A user cannot choose their own roles: Account/Register and Account/Update do not set Roles. Set them by editing the user on the Data tab of the Portal, or give a trusted role a put rule on Users that includes the Roles property. As Users has no owner, such a role can change the roles of any user.

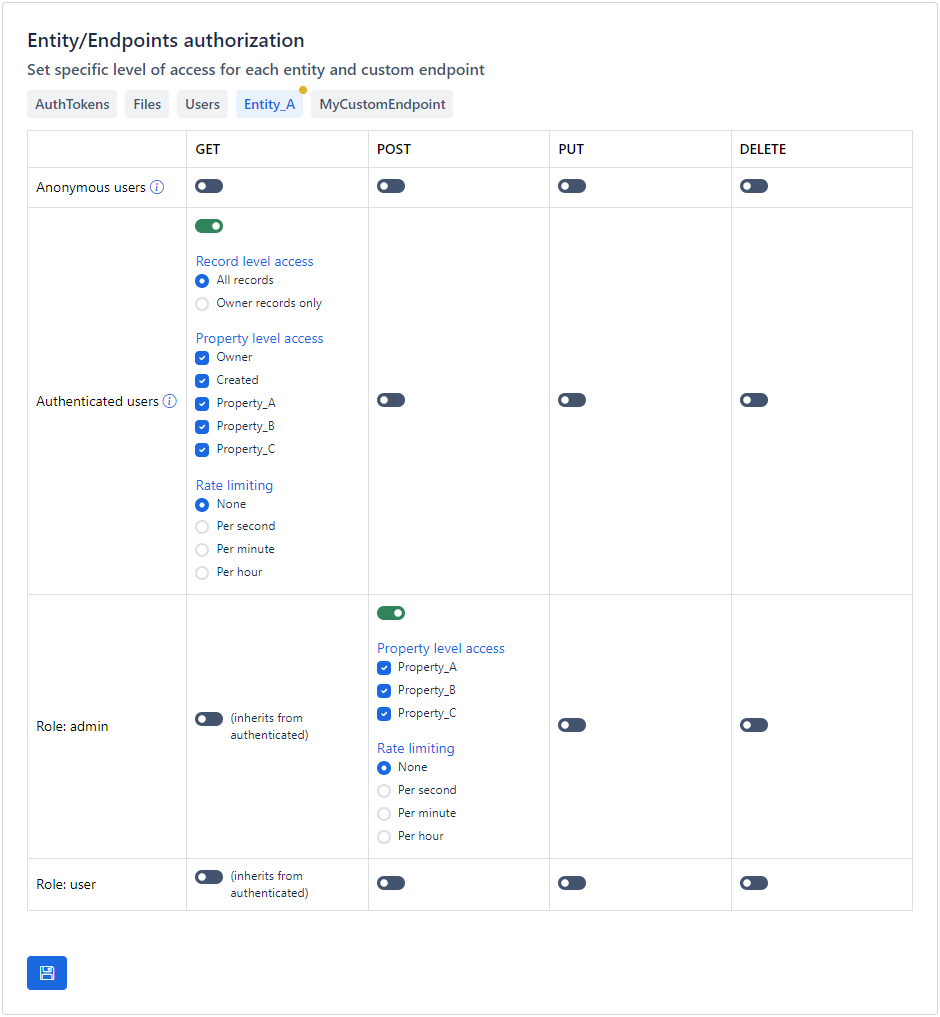

Entities/Properties¶

Apilane provides tools to enable granular access control to the application on entity and property level.

Security types¶

Security rules apply to three categories:

Actions¶

For each entity, you can configure permissions per role for these actions:

Record ownership¶

For get, put, and delete actions, you can further restrict access based on record ownership:

• All records — The role can access any record in the entity
• Owned records only — The role can only access records where the Owner property matches the current user's ID

Property-level access¶

For each role and action, you can specify which properties are accessible. This allows you to:

• Hide sensitive properties from certain roles
• Allow a role to read all properties but only write to specific ones
• Create different views of the same entity for different user groups

A rule with no property selected is not full access: a get then returns only the record ID, and a post or put is refused.

The Tree and Matrix buttons above the rules show the saved rules read-only, as the API enforces them: per item, role and action, with inherited access included.

How several rules combine¶

A call gets what ANONYMOUS, AUTHENTICATED (for a signed-in user) and each of the user's roles allow, together. Another rule never takes an action away; only Owned records only narrows what the others give:

• Actions: if any applicable rule allows the action, the caller may do it. Without a rule there is no access.
• Properties: the properties of all applicable rules are added together. The ID is always included.
• Records: if any applicable rule is limited to owned records, the caller gets only their own records, even when another rule gives all records. For a role to see every record, none of the rules that apply to its users for that action (ANONYMOUS, AUTHENTICATED or another role) may be limited to owned records.
• Rate limit: see Multiple rules.

Owned records only has no effect on post, on the entity Users (it has no owner), or for a caller without a valid token: an anonymous caller has no owner, so an ANONYMOUS rule marked Owned gives them every record. Leave it off for ANONYMOUS.

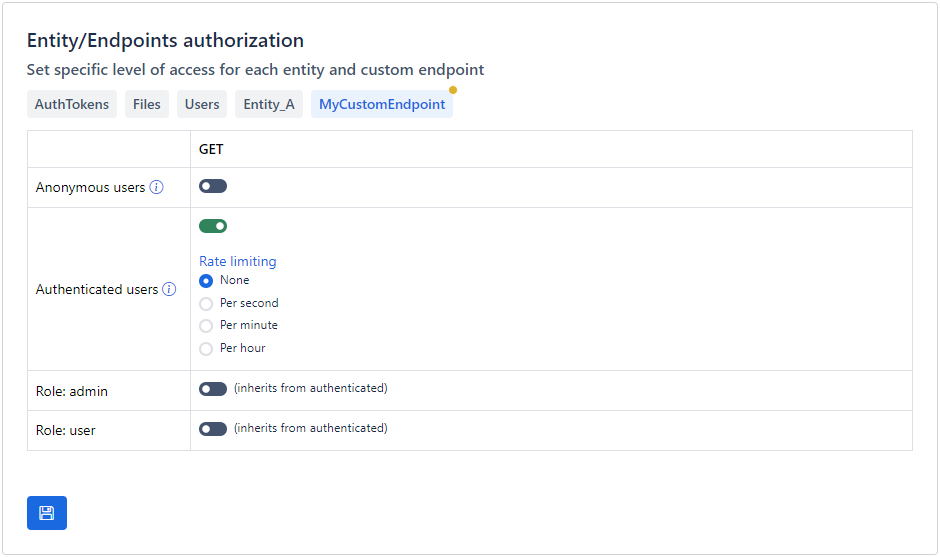

Custom endpoints¶

Apilane provides tools to enable granular access control to the application custom endpoints.

Until a custom endpoint has a rule for the caller, every call to it is refused (UNAUTHORIZED).

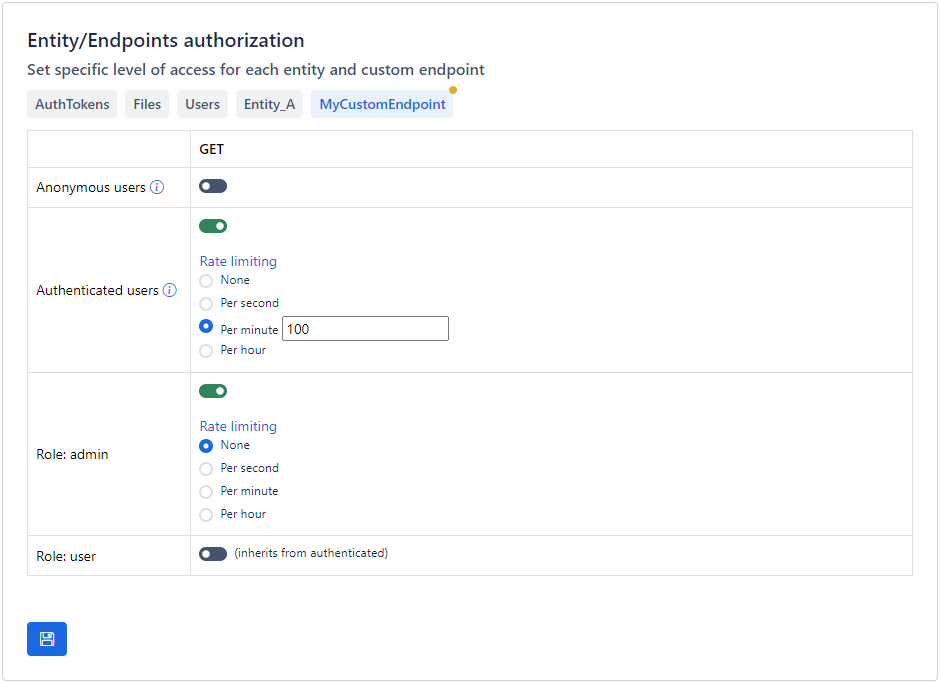

Rate limiting¶

If an application is accessible on the internet, you must also be prepared to deal with malicious users. For instance, if you permit unauthorized users to create records for an entity, it becomes easy for anyone to automate the process with a bot, potentially overwhelming your entity with millions of records.

One way to minimize the impact of a malicious attack is rate limiting. Rate limiting is a crucial security measure that helps protect your application by controlling the number of requests a user can make in a given timeframe, thus preventing abuse, ensuring fair usage, and maintaining optimal performance.

How it works¶

Apilane employs Sliding Window Rate Limiting to manage and control the rate of requests from users effectively. This method allows for a more granular approach to tracking request counts over time compared to traditional fixed window strategies.

What counts as a request¶

A rate limit belongs to a security rule, so requests are counted per entity (or custom endpoint), per action and per user. All anonymous callers of an application share one count.

Every request that the rule lets in counts, whichever endpoint it arrives through:

• Reads — Data/Get, Data/GetByID, Data/GetHistoryByID, Stats/Aggregate and Stats/Distinct all use the get allowance of the entity.
• Files — Files/Get, Files/GetByID and Files/Download use the get allowance of Files; Files/Post and Files/Delete use its post and delete allowances.
• Transactions — each operation inside Data/Transaction or Data/TransactionOperations counts as one request against the rule of its own entity or custom endpoint. If one operation is refused, the whole transaction is refused and nothing is written, but the operations before it still count. A transaction with more operations on one rule than the rule allows in its time window can therefore never succeed: keep transactions within the limit, or raise the limit.
• Schema — Data/Schema uses the allowance of the schema rule.

A single request or operation that carries several records (a post with an array of records) counts once. An entity and a custom endpoint with the same name are counted separately.

People who manage the application (its owner, its collaborators and the administrators of the instance) working in the Portal are never rate limited, and the security rules and the IP list do not apply to them.

Configuration options¶

For each security rule, you can configure a rate limit with two parameters:

Available time windows:

Multiple rules¶

When multiple rate limiting rules are applicable to a particular user or endpoint, the system evaluates all relevant rules and ultimately applies the most permissive rule, allowing for the highest allowable request rate. If one of the applicable rules has no rate limit, the caller is not limited at all. Only the rules that apply to the caller are considered: a rule for a role the caller does not have neither limits them nor lifts their limit.

Best practices¶

• Always rate limit public endpoints — Entities accessible by Anonymous users should always have rate limits configured
• Balance security with usability — Overly strict rate limits may frustrate legitimate users. Tailor limits to your application's specific usage patterns
• Use different limits for different roles — Administrators and internal services typically need higher limits than end users
• Monitor rate limit hits — If legitimate users are frequently hitting rate limits, consider adjusting the thresholds
• Account for multi-instance deployments — If running multiple API instances, remember that each instance enforces limits independently. Adjust your configured limits accordingly (divide by the number of instances for approximate cluster-wide enforcement)
