Custom Endpoints¶

Custom endpoints offer an easy and direct way to expose complex functionality for your application by running SQL queries as API endpoints.

How It Works¶

1. Name your endpoint — e.g., GetActiveUsers. A name has letters a-z and A-Z only, at most 80, and is matched ignoring case. The address of the endpoint ends in it
2. Write the SQL query to execute against the storage provider — e.g., SELECT [Email], [Username] FROM [Users] WHERE [ID] = {UserID}
3. Define parameters by wrapping names in curly braces — e.g., {UserID} becomes a query parameter
4. Configure access through the Security settings
5. Call the endpoint — GET https://my.api.server/api/Custom/GetActiveUsers?UserID=42 (with x-application-token header)

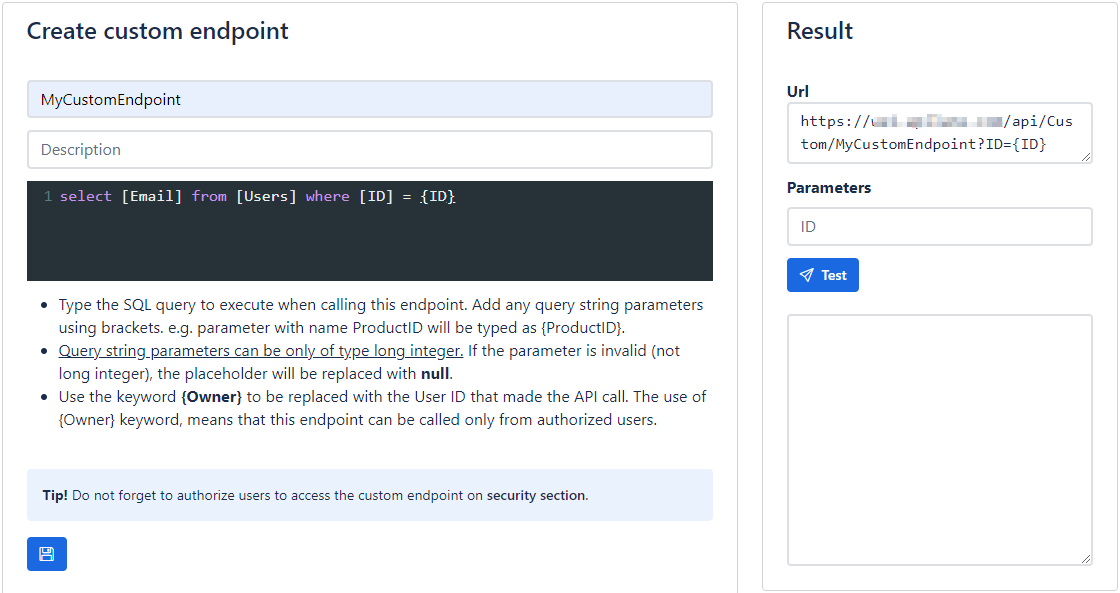

Custom endpoints are created on the Custom endpoints tab of the application in the Portal (New endpoint). The editor shows the address and the parameters as you type, and Test runs the query with the values you enter. The Help button in the header of the editor explains the query, the parameters and the test.

Parameters¶

Parameters in your SQL query are wrapped in {braces} and are automatically bound from the request's query string.

Example query:

SELECT [Name], [Price] FROM [Products] WHERE [CategoryID] = {CategoryID} AND [ID] > {MinID}

API call:

GET https://my.api.server/api/Custom/GetProducts?CategoryID=5&MinID=100
x-application-token: {appToken}

A parameter name has letters and underscores only ({Category_ID}, not {ID2}), and the query string must spell it exactly as the SQL does, capitals included. A parameter that is missing, or whose value is not a whole number, is replaced by null in the SQL.

The caller: {Owner}¶

The keyword {Owner} is replaced by the ID of the signed-in user who made the call, so an endpoint can return or change only the caller's own data:

SELECT [ID], [Title] FROM [Orders] WHERE [Owner] = {Owner}

{Owner} is not a query string parameter and cannot be set by the caller. For a call without a signed-in user it is not replaced and the database refuses the query. Test in the Portal does not replace it either: put a user ID in its place to try the query.

Multiple Result Sets¶

A custom endpoint can contain multiple SQL statements separated by semicolons. Each statement returns a separate result set:

SELECT [ID], [Name] FROM [Categories] WHERE [ID] = {CatID};
SELECT [ID], [Name], [Price] FROM [Products] WHERE [CategoryID] = {CatID}

The response is always a list of result sets, one array per result set (a query with a single statement gives [[ {...}, {...} ]]):

[
  [{ "ID": 5, "Name": "Electronics" }],
  [
    { "ID": 1, "Name": "Widget", "Price": 9.99 },
    { "ID": 2, "Name": "Gadget", "Price": 19.99 }
  ]
]

Writes, transactions and limits¶

The SQL can be anything your database runs, inserts, updates and deletes included, and it is still called with a plain GET. A call runs inside a transaction: if the query fails nothing it did is kept, if it succeeds the changes are committed. The call has 20 seconds, after which the transaction is cancelled and nothing is kept. Called as an operation of a transaction, it is part of that transaction and has its time.

• Test in the Portal runs the query as it is in the editor and never commits: whatever it changes is rolled back. On MySQL a statement that changes tables or columns (CREATE, ALTER, DROP, TRUNCATE, RENAME) is committed at once, even in a test, and cannot be undone.
• Do not use BEGIN, COMMIT or ROLLBACK in the query, and do not create or drop tables and columns: the application would no longer match its definition.
• A query that writes does not get the checks of the standard calls, such as minimum and maximum values, validation patterns, encryption of encrypted properties and change tracking. Check what you write yourself.
• On SQLite, statements that reach outside the database of the application, such as ATTACH or most PRAGMA, are refused.

Security¶

Custom endpoint access is managed separately from entity security. Open the Security tab of the application in the Portal and configure which roles can access each custom endpoint. Until a rule allows the caller, every call to the endpoint is refused (UNAUTHORIZED). The rules are written for the name of the endpoint: after a rename they no longer apply and must be set again.

See Security > Custom endpoints for more details.

SDK Usage¶

// Single result set
var result = await _apilaneService.GetCustomEndpointAsync<List<Product>>(
    CustomEndpointRequest.New("GetProducts")
        .WithAuthToken(authToken)
        .WithParameter("CategoryID", 5));

// Multiple result sets
var result = await _apilaneService
    .GetCustomEndpointAsync<List<Category>, List<Product>>(
        CustomEndpointRequest.New("GetCategoryWithProducts")
            .WithAuthToken(authToken)
            .WithParameter("CatID", 5));

var (categories, products) = result.Match(
    data => data,
    error => throw new Exception(error.Message));
